    Toggle logic using inner remote 3-way switch possible?

    Discussion in 'Logic' started by PromisedPossum, Jan 14, 2019.

    1. PromisedPossum

      Joined:
      Nov 17, 2017
      Messages:
      30
      I would like to be able to toggle a rail in 3 variations/directions via 1 inner remote button on the hotbar is this possible? I have been able to do multiples of 2 using the flip-flops but odd numbers elude me*. I thought I'd seen this done in a thread but cannot find it. To be clear I'm not talking about a rail rotator blocks, I would like to toggle the orientation of a docker block arrow: Up, Down and Left. (to match various orientations of Basic rails)

      *No doubt I'll face palm when the answer is given.

    2. Sachys

      Sachys Hermit.

      Joined:
      Nov 30, 2015
      Messages:
      632
      I would imagine theres a means to setup the ISR as a toggle between three states, but beyond that... \O____o/

      ...and now my brain hurts! :confused:

    3. Crashmaster

      Crashmaster I got N64 problems but a bitch ain't one

      Joined:
      Oct 18, 2013
      Messages:
      397
      Have one of the steps in an even chain just input another pulse to the flip-flop chain essentially skipping it. I think that's what I've done iirc.

      • Like Like x 1
    4. PromisedPossum

      Joined:
      Nov 17, 2017
      Messages:
      30
      I was able to implement your suggestion Crashmaster. With a 0.5 second delay I was able to jump the fourth activation. Too bad I could not use a button to be instintanious, however I have a 3-way toggle on the hotbar! Thanks for the assistance.

    5. DeepspaceMechanic

      Joined:
      Mar 10, 2016
      Messages:
      406

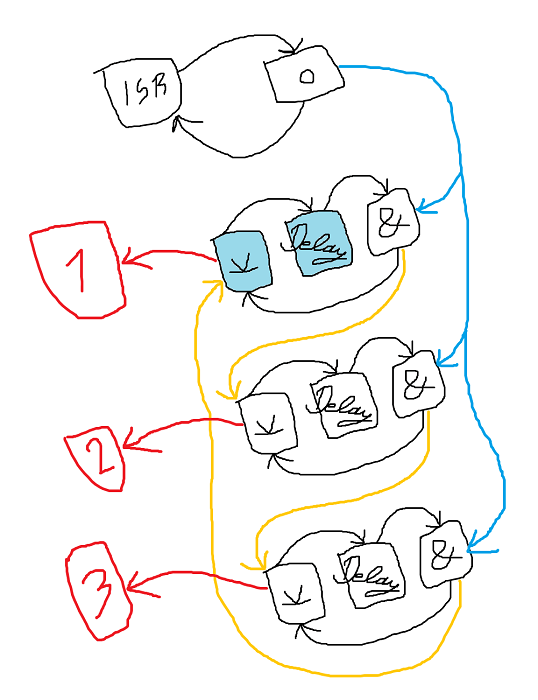

      Notice that the first FlipFlop-Delay pair has to be manually turned on before you can start stepping with consequent pushes of the inner-ship remote.

      For your needs, 1=Up, 2=Down, 3=Left.

      (How do you like my hand-drawing-with-a-mouse-in-MS-Paint skills?) ;)



      Untitled - Copy.png

      #5 DeepspaceMechanic, Jan 19, 2019
      Last edited: Jan 19, 2019
    6. PromisedPossum

      Joined:
      Nov 17, 2017
      Messages:
      30
      Genius! I give your mouse drawing a B, the text an A+.

      • Like Like x 1
    7. DeepspaceMechanic

      Joined:
      Mar 10, 2016
      Messages:
      406

      Thank you, professor! ;)

      Also, sorry for drawing the FlipFlop symbol flipped :rolleyes:
